Textile Reinforced 10Bar Water Hose
Water Hose
Suction & Delivery Hose
Overview – Totflex Suction & Discharge water hoses are engineered to perform across all levels of pressure and operating conditions required in industrial, construction, agricultural, and municipal water-handling applications. Each product family in this category is built according to the relevant TS EN ISO standards and supplied in 61-meter standard lengths, ensuring uniformity across all hose types.
See the full data sheet for our water hose range below:
Click to view details, download the file, or contact us for more information.
Water Hose – Textile Reinforced – 10 Bar
Description – Flat-lay textile-reinforced water hose designed for 10-bar service where stronger flat-lay performance is required compared to the 5-bar version.
Technical Specification and Features
Temperature
-5°C | +55°C
Working Pressure
10 Bar / 145.03 psi
Bursting Pressure
30 Bar / 435.11 psi
ID and OD Range
ID – 2″ to 5″ | OD – 2 1/4″ to 5 1/3″
Flow Medium
Water
Standard / Approval
–
Application
Industrial and construction water distribution lines, agricultural watering systems, and general flat-lay water delivery under medium pressure.

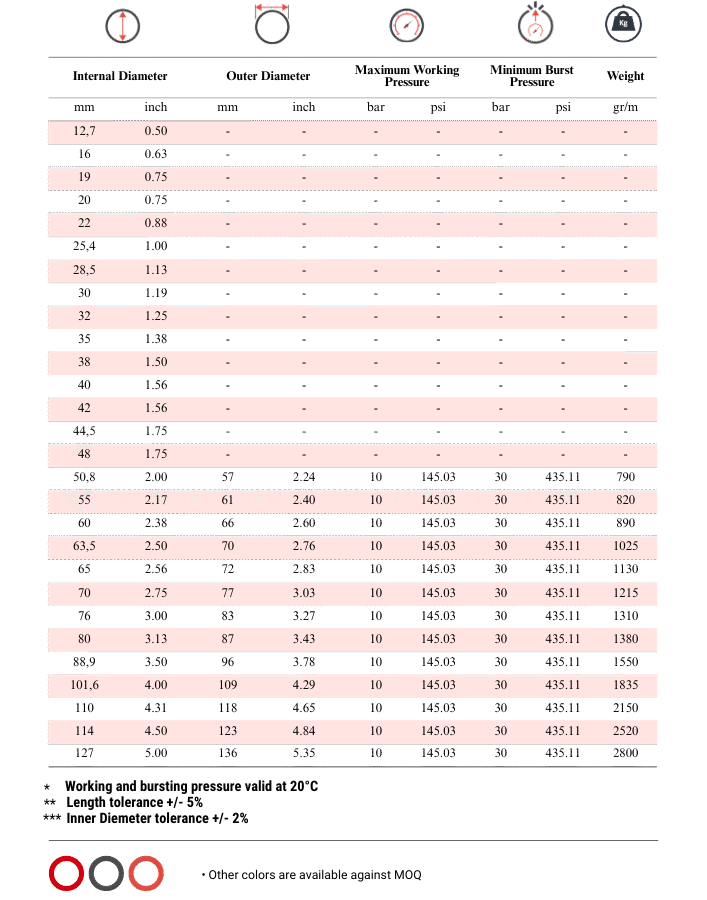

Technical Specifications and Range of Sizes
