T270 · Rubber Expansion Joints

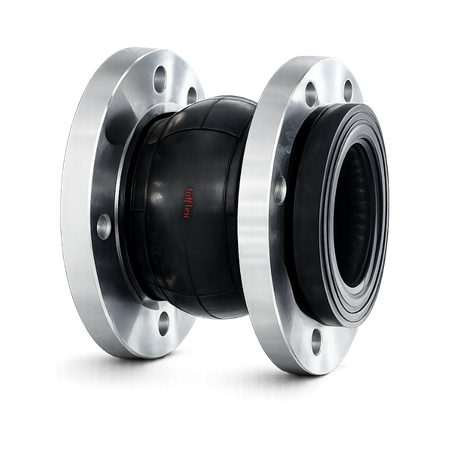

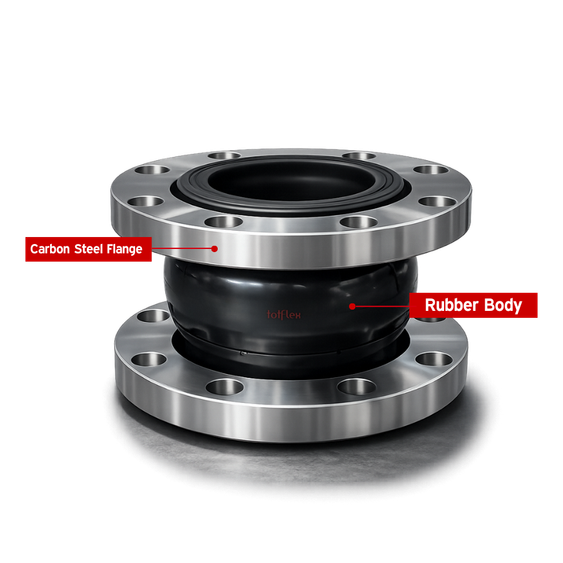

Single Sphere Rubber Expansion Joint

A single-arch moulded rubber bellows that absorbs axial, lateral and angular movement while damping vibration and noise — for pumps, HVAC, water and pressure-boosting lines.

DN 32 – DN 1200Size rangeUp to 40 barWorking pressure-30 to +150 °CTemperature

Request a quote Datasheet

/01

Technical Data

Model	T270 — single sphere
Rubber	EPDM / NBR / CR / NR
Size range	DN32 – DN1200
Working pressure	Up to 40 bar (size dependent)
Temperature	-30 °C to +150 °C
Flanges	EN 1092-1 PN10/16/25 · ANSI 150 — loose, rotating
Movement	Axial · lateral · angular + vibration damping
Options	PTFE lining · control rods · special compounds

EN 1092-1 / ANSI B16.5EN 10204 3.13× BURST SAFETY FACTOR

Movements absorbed

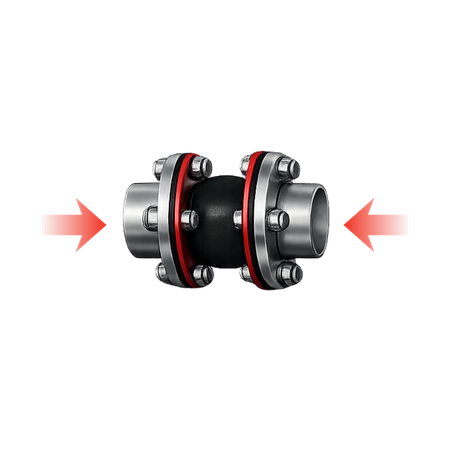

Axial compression

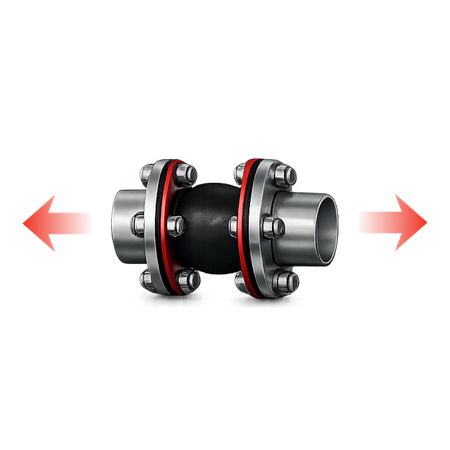

Axial extension

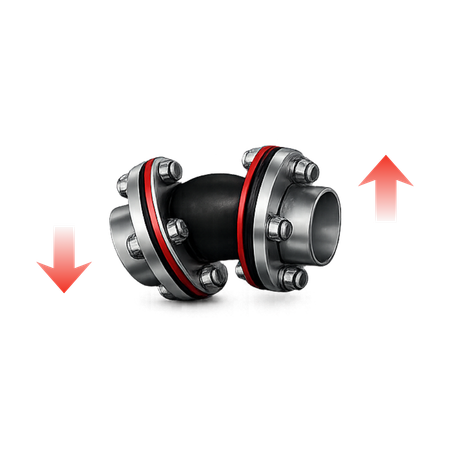

Lateral deflection

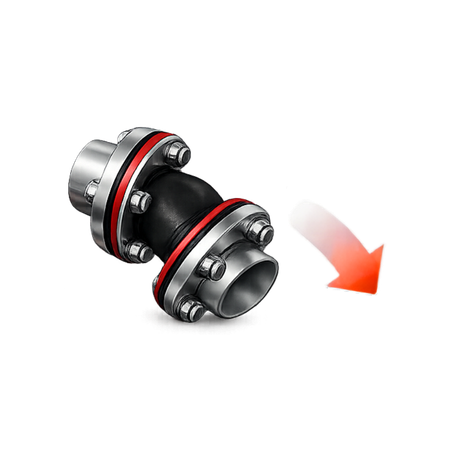

Angular deflection

/02

Size & Order Codes

Nominal size (DN)

Flange standard

216 of 216 sizes

DN	Length (mm)	OD (mm)	ID (mm)	Flange	Item code
32	95	77	32	PN10	T270_10000084-00
32	100	77	32	PN10	T270_10000180-00
32	130	77	32	PN10	T270_10000140-00
32	152	77	32	PN10	T270_10000000-00
32	95	77	32	PN16	T270_10000085-00
32	100	77	32	PN16	T270_10000181-00
32	130	77	32	PN16	T270_10000141-00
32	152	77	32	PN16	T270_10000001-00
32	95	77	32	PN25	T270_10000086-00
32	100	77	32	PN25	T270_10000182-00
32	130	77	32	PN25	T270_10000142-00
32	152	77	32	PN25	T270_10000002-00
32	95	77	32	ANSI 150	T270_10000087-00
32	100	77	32	ANSI 150	T270_10000183-00
32	130	77	32	ANSI 150	T270_10000143-00
32	152	77	32	ANSI 150	T270_10000003-00
40	95	84	40	PN10	T270_10000088-00
40	100	84	40	PN10	T270_10000184-00
40	130	84	40	PN10	T270_10000144-00
40	152	84	40	PN10	T270_10000004-00
40	200	84	40	PN10	T270_10000337-00
40	95	84	40	PN16	T270_10000089-00
40	100	84	40	PN16	T270_10000185-00
40	130	84	40	PN16	T270_10000145-00
40	152	84	40	PN16	T270_10000005-00
40	200	84	40	PN16	T270_10000338-00
40	95	84	40	PN25	T270_10000090-00
40	100	84	40	PN25	T270_10000186-00
40	130	84	40	PN25	T270_10000146-00
40	152	84	40	PN25	T270_10000006-00
40	200	84	40	PN25	T270_10000339-00
40	95	84	40	ANSI 150	T270_10000091-00
40	100	84	40	ANSI 150	T270_10000187-00
40	130	84	40	ANSI 150	T270_10000147-00
40	152	84	40	ANSI 150	T270_10000007-00
40	200	84	40	ANSI 150	T270_10000340-00
50	100	87	50	PN10	T270_10000188-00
50	105	87	50	PN10	T270_10000092-00
50	130	87	50	PN10	T270_10000148-00
50	152	87	50	PN10	T270_10000008-00
50	200	87	50	PN10	T270_10000341-00
50	100	87	50	PN16	T270_10000189-00
50	105	87	50	PN16	T270_10000093-00
50	130	87	50	PN16	T270_10000149-00
50	152	87	50	PN16	T270_10000009-00
50	200	87	50	PN16	T270_10000342-00
50	100	87	50	PN25	T270_10000190-00
50	105	87	50	PN25	T270_10000094-00
50	130	87	50	PN25	T270_10000150-00
50	152	87	50	PN25	T270_10000010-00
50	200	87	50	PN25	T270_10000343-00
50	100	87	50	ANSI 150	T270_10000191-00
50	105	87	50	ANSI 150	T270_10000095-00
50	130	87	50	ANSI 150	T270_10000151-00
50	152	87	50	ANSI 150	T270_10000011-00
50	200	87	50	ANSI 150	T270_10000344-00
65	100	112	65	PN10	T270_10000192-00
65	115	112	65	PN10	T270_10000096-00
65	130	112	65	PN10	T270_10000152-00
65	152	112	65	PN10	T270_10000012-00
65	200	112	65	PN10	T270_10000345-00
65	100	112	65	PN16	T270_10000193-00
65	115	112	65	PN16	T270_10000097-00
65	130	112	65	PN16	T270_10000153-00
65	152	112	65	PN16	T270_10000013-00
65	200	112	65	PN16	T270_10000346-00
65	100	112	65	PN25	T270_10000194-00
65	115	112	65	PN25	T270_10000098-00
65	130	112	65	PN25	T270_10000154-00
65	152	112	65	PN25	T270_10000014-00
65	200	112	65	PN25	T270_10000347-00
65	100	112	65	ANSI 150	T270_10000195-00
65	115	112	65	ANSI 150	T270_10000099-00
65	130	112	65	ANSI 150	T270_10000155-00
65	152	112	65	ANSI 150	T270_10000015-00
65	200	112	65	ANSI 150	T270_10000348-00
80	100	127	80	PN10	T270_10000196-00
80	130	127	80	PN10	T270_10000100-00
80	152	127	80	PN10	T270_10000016-00
80	200	127	80	PN10	T270_10000349-00
80	100	127	80	PN16	T270_10000197-00
80	130	127	80	PN16	T270_10000101-00
80	152	127	80	PN16	T270_10000017-00
80	200	127	80	PN16	T270_10000350-00
80	100	127	80	PN25	T270_10000198-00
80	130	127	80	PN25	T270_10000102-00
80	152	127	80	PN25	T270_10000018-00
80	200	127	80	PN25	T270_10000351-00
80	100	127	80	ANSI 150	T270_10000199-00
80	130	127	80	ANSI 150	T270_10000103-00
80	152	127	80	ANSI 150	T270_10000019-00
80	200	127	80	ANSI 150	T270_10000352-00
100	100	147	100	PN10	T270_10000200-00
100	130	147	100	PN10	T270_10000156-00
100	150	147	100	PN10	T270_10000020-00
100	200	147	100	PN10	T270_10000353-00
100	100	147	100	PN16	T270_10000201-00
100	130	147	100	PN16	T270_10000157-00
100	150	147	100	PN16	T270_10000021-00
100	200	147	100	PN16	T270_10000354-00
100	100	147	100	PN25	T270_10000202-00
100	130	147	100	PN25	T270_10000158-00
100	150	147	100	PN25	T270_10000022-00
100	200	147	100	PN25	T270_10000355-00
100	100	147	100	ANSI 150	T270_10000203-00
100	130	147	100	ANSI 150	T270_10000159-00
100	150	147	100	ANSI 150	T270_10000023-00
100	200	147	100	ANSI 150	T270_10000356-00
125	120	184	125	PN10	T270_10000204-00
125	130	184	125	PN10	T270_10000160-00
125	152	184	125	PN10	T270_10000024-00
125	165	184	125	PN10	T270_10000104-00
125	120	184	125	PN16	T270_10000205-00
125	130	184	125	PN16	T270_10000161-00
125	152	184	125	PN16	T270_10000025-00
125	165	184	125	PN16	T270_10000105-00
125	120	184	125	PN25	T270_10000206-00
125	130	184	125	PN25	T270_10000162-00
125	152	184	125	PN25	T270_10000026-00
125	165	184	125	PN25	T270_10000106-00
125	120	184	125	ANSI 150	T270_10000207-00
125	130	184	125	ANSI 150	T270_10000163-00
125	152	184	125	ANSI 150	T270_10000027-00
125	165	184	125	ANSI 150	T270_10000107-00
150	120	208	150	PN10	T270_10000208-00
150	130	208	150	PN10	T270_10000164-00
150	152	208	150	PN10	T270_10000028-00
150	180	208	150	PN10	T270_10000108-00
150	200	208	150	PN10	T270_10000357-00
150	120	208	150	PN16	T270_10000209-00
150	130	208	150	PN16	T270_10000165-00
150	152	208	150	PN16	T270_10000029-00
150	180	208	150	PN16	T270_10000109-00
150	200	208	150	PN16	T270_10000358-00
150	120	208	150	PN25	T270_10000210-00
150	130	208	150	PN25	T270_10000166-00
150	152	208	150	PN25	T270_10000030-00
150	180	208	150	PN25	T270_10000110-00
150	200	208	150	PN25	T270_10000359-00
150	120	208	150	ANSI 150	T270_10000211-00
150	130	208	150	ANSI 150	T270_10000167-00
150	152	208	150	ANSI 150	T270_10000031-00
150	180	208	150	ANSI 150	T270_10000111-00
150	200	208	150	ANSI 150	T270_10000360-00
200	120	267	200	PN10	T270_10000212-00
200	130	267	200	PN10	T270_10000168-00
200	152	267	200	PN10	T270_10000032-00
200	203	267	200	PN10	T270_10000112-00
200	120	267	200	PN16	T270_10000213-00
200	130	267	200	PN16	T270_10000169-00
200	152	267	200	PN16	T270_10000033-00
200	203	267	200	PN16	T270_10000113-00
200	120	267	200	PN25	T270_10000214-00
200	130	267	200	PN25	T270_10000170-00
200	152	267	200	PN25	T270_10000034-00
200	203	267	200	PN25	T270_10000114-00
200	120	267	200	ANSI 150	T270_10000215-00
200	130	267	200	ANSI 150	T270_10000171-00
200	152	267	200	ANSI 150	T270_10000035-00
200	203	267	200	ANSI 150	T270_10000115-00
250	130	321	250	PN10	T270_10000172-00
250	203	321	250	PN10	T270_10000036-00
250	230	321	250	PN10	T270_10000116-00
250	130	321	250	PN16	T270_10000173-00
250	203	321	250	PN16	T270_10000037-00
250	230	321	250	PN16	T270_10000117-00
250	130	321	250	ANSI 150	T270_10000175-00
250	203	321	250	ANSI 150	T270_10000039-00
250	230	321	250	ANSI 150	T270_10000119-00
300	130	371	300	PN10	T270_10000176-00
300	203	371	300	PN10	T270_10000040-00
300	245	371	300	PN10	T270_10000120-00
300	130	371	300	PN16	T270_10000177-00
300	203	371	300	PN16	T270_10000041-00
300	245	371	300	PN16	T270_10000121-00
300	130	371	300	ANSI 150	T270_10000179-00
300	203	371	300	ANSI 150	T270_10000043-00
300	245	371	300	ANSI 150	T270_10000123-00
350	203	431	350	PN10	T270_10000044-00
350	255	431	350	PN10	T270_10000124-00
350	203	431	350	PN16	T270_10000045-00
350	255	431	350	PN16	T270_10000125-00
350	203	431	350	ANSI 150	T270_10000047-00
350	255	431	350	ANSI 150	T270_10000127-00
400	203	484	400	PN10	T270_10000048-00
400	255	484	400	PN10	T270_10000128-00
400	203	484	400	PN16	T270_10000049-00
400	255	484	400	PN16	T270_10000129-00
400	203	484	400	ANSI 150	T270_10000051-00
400	255	484	400	ANSI 150	T270_10000131-00
450	203	537	450	PN10	T270_10000052-00
450	255	537	450	PN10	T270_10000132-00
450	203	537	450	PN16	T270_10000053-00
450	255	537	450	PN16	T270_10000133-00
450	203	537	450	ANSI 150	T270_10000055-00
450	255	537	450	ANSI 150	T270_10000135-00
500	203	589	500	PN10	T270_10000056-00
500	255	589	500	PN10	T270_10000136-00
500	203	589	500	PN16	T270_10000057-00
500	255	589	500	PN16	T270_10000137-00
500	203	589	500	ANSI 150	T270_10000059-00
500	255	589	500	ANSI 150	T270_10000139-00
600	260	689	600	PN10	T270_10000060-00
600	260	689	600	PN16	T270_10000061-00
600	260	689	600	ANSI 150	T270_10000063-00

/03

Selection Guide

T270-03With Tie Rod

Absorbs the pressure thrust force and prevents the expansion joint from stretching. Keeps your piping and connected equipment free from additional load.

Best forHVAC · water · pump connections

T270-02PTFE Lined

Inert liner over the rubber arch for aggressive chemical and high-purity media.

Best forChemical & process lines

T270-01With Control Rods

Maintains the safe movement range of the expansion joint by limiting over-extension and over-compression. Extends bellows life under vibration and sudden pressure changes.

Best forUnanchored / rooftop piping

All units feature a 3× burst pressure safety factor for added reliability.

/04

Datasheet & Drawings

Single sphere specifications and the full size table on one page, plus the family technical drawing. A certified approval drawing follows with your quotation.

Download datasheet All technical drawings

EN 10204 3.1 material certificates are supplied with your shipment.
