Channelled and Wired Water Hose
Water Hose
Suction & Delivery Hose
Overview – Totflex Suction & Discharge water hoses are engineered to perform across all levels of pressure and operating conditions required in industrial, construction, agricultural, and municipal water-handling applications. Each product family in this category is built according to the relevant TS EN ISO standards and supplied in 61-meter standard lengths, ensuring uniformity across all hose types.
See the full data sheet for our water hose range below:
Click to view details, download the file, or contact us for more information.

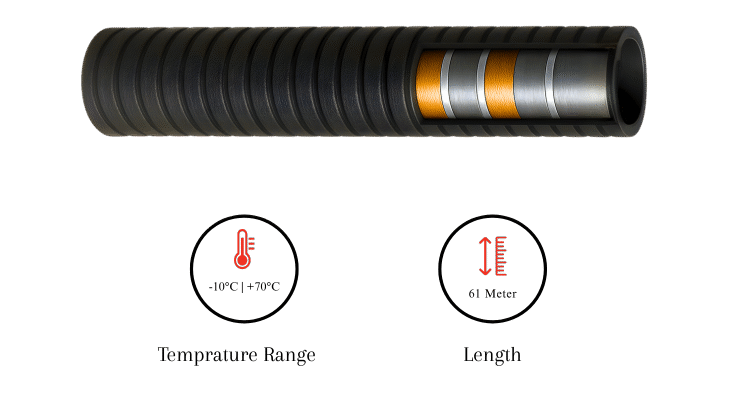

Water Hose – Channelled and Wired
Description– Wire-reinforced rubber water hose with channelled outer structure, designed to maintain flexibility while preventing kinking under 10-bar operating pressure.
Technical Specification and Features
Temperature
-15°C | +60°C
Working Pressure
10 Bar / 145.03 psi
Bursting Pressure
30 Bar / 435.11 psi
ID and OD Range
ID – 1/2 ” to 5″ | OD – 6/7″ to 5 3/4″
Flow Medium
Water
Standard / Approval
–
Application
Used in industrial water lines, machinery connections, construction sites, and applications requiring a flexible hose that resists collapsing or bending during operation.
Technical Specifications and Range of Sizes
Send a Request
Didn’t find exactly what you need?
Check our other hose types and contact us – our team will help you choose the right product for your application.
