Corugated and Channeled Fuel Hose 16 Bar
Fuel Hose
Suction & Delivery Hose
Overview – Totflex fuel hoses are rubber hoses designed for the transfer of gasoline, diesel, and fuel oil with up to 50% aromatic content, produced in 10-bar and 16-bar versions in delivery, suction–delivery, and corrugated/channeled constructions. All types are supplied in 61-meter lengths and offer consistent performance across a wide size range, with working pressure 10–16 bar and bursting pressure 30–48 bar.
See the full data sheet for our fuel hose range below:
Click to view details, download the file, or contact us for more information.

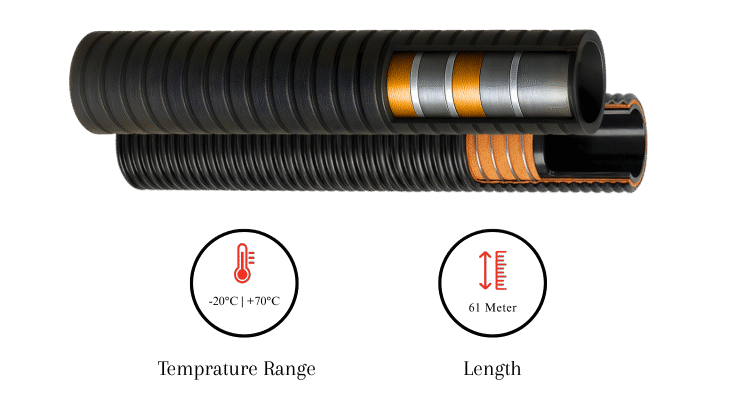

Fuel Hose – Corugated/Channeled 16 Bar
Description – Rubber suction–discharge fuel hose with corrugated and channelled outer structure, used for transfer of gasoline, diesel and fuel oil with aromatic content up to 50% at 16 bar working pressure.
Technical Specification and Features
Temperature
-20°C | +70°C
Working Pressure
16 Bar / 232.06 psi
Bursting Pressure
48 Bar / 696.18 psi
ID and OD Range
ID – 3/4 ” to 5″ | OD – 1 2/9″ to 5 5/6″
Flow Medium
Gasoline, diesel, fuel oil (aroma content 50%).
Standard / Approval
–
Application
Used in suction and transfer operations of gasoline, diesel and fuel oil (aroma content 50%) where a corrugated and channelled hose construction is required at 16 bar working pressure.
Technical Specifications and Range of Sizes
