Heavy Duty Air Hose
Air Hose
Suction & Delivery Hose
Overview – Totflex air hoses are rubber compressed-air hoses manufactured according to TS EN ISO 2398 Type 1–2–3 Class A for supplying compressed air to tools and equipment in industrial, mining, tunnel and construction applications, with working pressures between 10–25 bar and burst pressures between 40–100 bar. In addition, the range includes dust and air suction hoses for vacuuming cold/hot air, dust, smoke, chips and particles with –0.60 bar vacuum rating, all supplied in 61 m lengths
See the full data sheet for our air hose range below:
Click to view details, download the file, or contact us for more information.

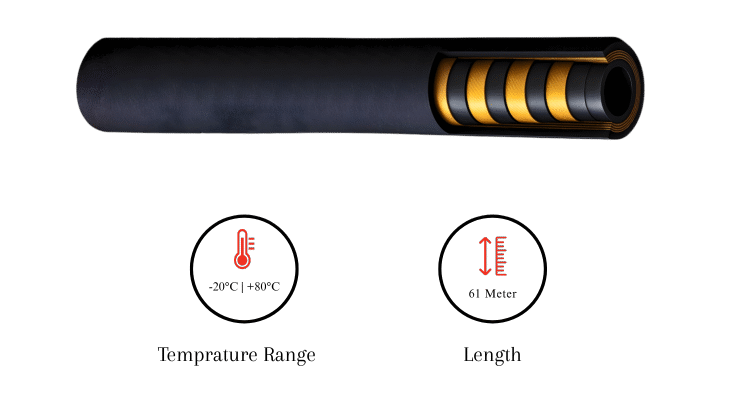

Air Hose – Heavy Duty
Description – Heavy-duty rubber air hose for compressed air transfer in demanding conditions such as mines and construction sites, supplied in 61 m lengths.
Technical Specification and Features
Temperature
-20°C | +80°C
Working Pressure
25 Bar / 362.59 psi
Bursting Pressure
100 Bar / 1450.38 psi
ID and OD Range
ID – 1/2″ to 5″ | OD – 1″ to 5 3/4″
Flow Medium
Compressed air.
Standard / Approval
TS EN ISO 2398 Type 3, Class A
Application
Used for heavy-duty compressed air transfer in mining and construction applications.

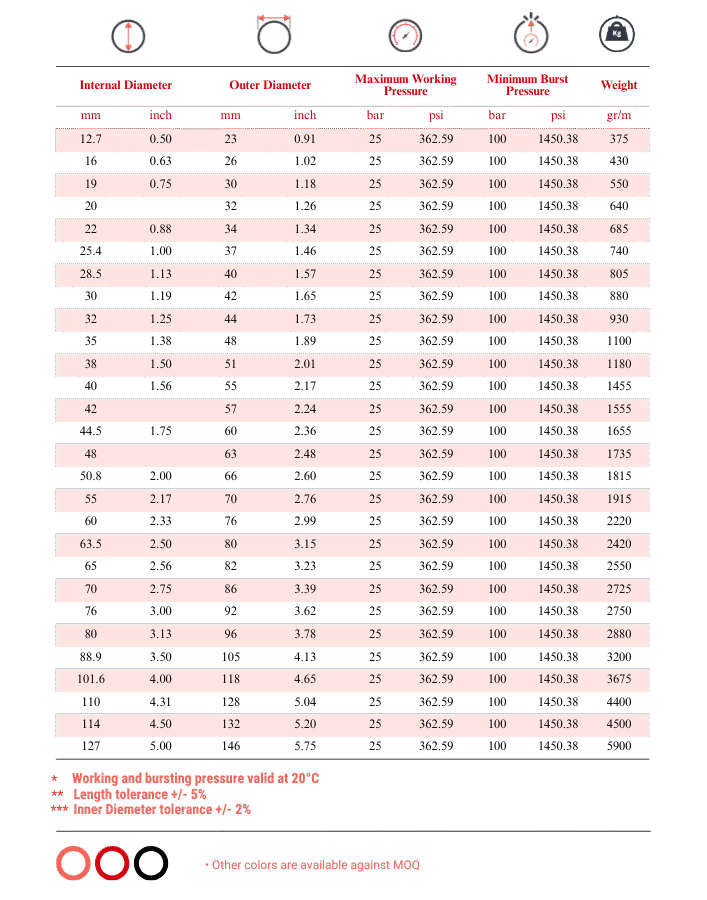

Technical Specifications and Range of Sizes
Send a Request
Didn’t find exactly what you need?
Check our other hose types and contact us – our team will help you choose the right product for your application.
