Sandblast Suction and Discharge Abrasive Hose
Abrasive Hose
Suction & Delivery Hose
Overview – Totflex abrasive hoses are rubber hoses used for transferring and discharging sand, cement, powder, plaster, mortar, and dry solid materials, offered in discharge, suction–discharge, and corrugated/channeled types. The range includes plaster hoses (40 bar), sand hoses (12 bar), cement hoses (10 bar), and silo hoses (5 bar), each supplied in 61-meter lengths.
See the full data sheet for our abrasive hose range below:
Click to view details, download the file, or contact us for more information.

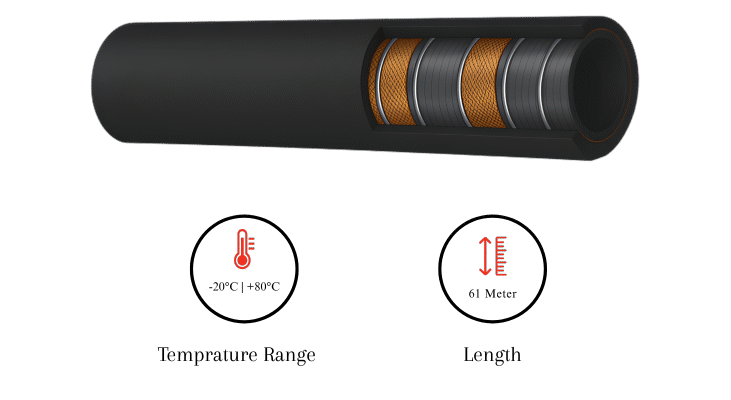

Abrasive Hose – Sandblast Suction and Discharge
Description – Suction & discharge hose, engineered for both feeding and receiving abrasive materials. Stronger structure provides vacuum support and maintains flexibility under load.
Technical Specification and Features
Temperature
-20°C | +80°C
Working Pressure
12 Bar / 174.45 psi
Bursting Pressure
36 Bar / 522.13 psi
ID and OD Range
ID – 1″ to 5″ | OD – 1 3/5″ to 6″
Flow Medium
Sand, plaster, powders
Standard / Approval
–
Application
Sandblasting feed & return lines, dual-direction plaster transfer, dry construction materials loading/unloading.
Technical Specifications and Range of Sizes
